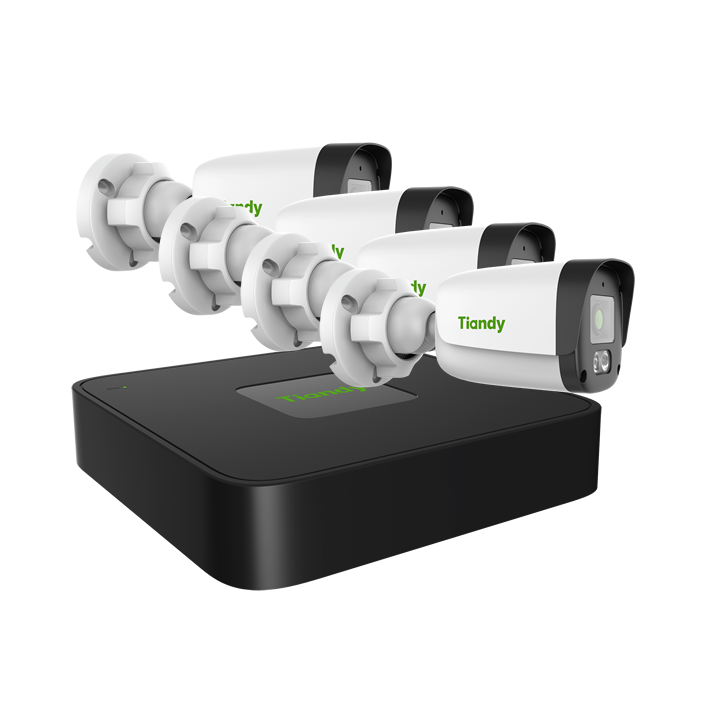

Tiandy TC-S321N3105 PoE Security Kit

The Tiandy TC-S321N3105 is a professional PoE security system combining an intelligent NVR recorder with a high-performance IP camera. This complete package provides everything you need for reliable surveillance in residential, retail, or commercial environments.

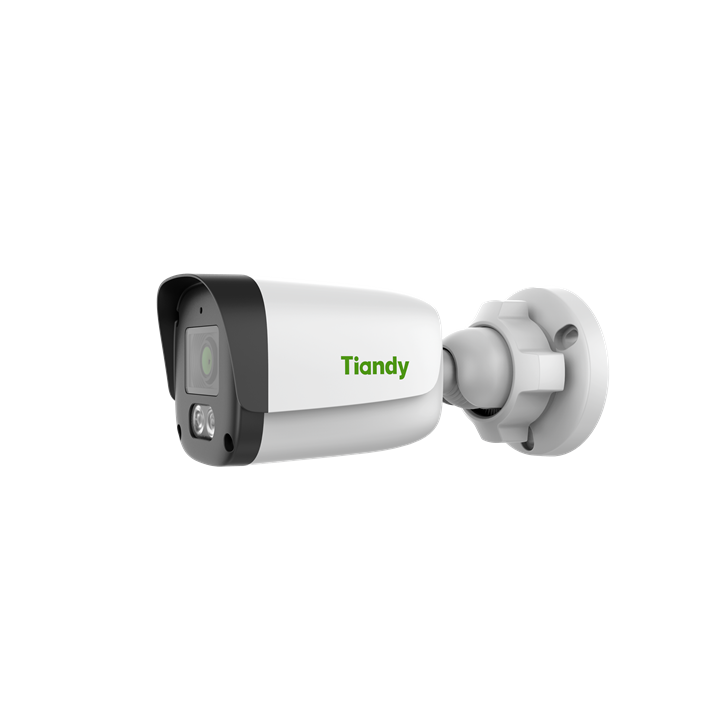

The TC-C321N camera features a sensitive 1/3" CMOS sensor delivering 2MP resolution (1920x1080) at 30fps. With minimum illumination of 0.02 Lux in color mode and IR night vision extending to 30 meters, this camera performs effectively in challenging light conditions. The 2.8mm lens ensures a wide horizontal viewing angle of 94.4°. Thanks to IP67 certification, the camera is fully waterproof and dust-resistant. Power is supplied via PoE (max. 3W, IEEE 802.3af) and integrates seamlessly with the NVR.

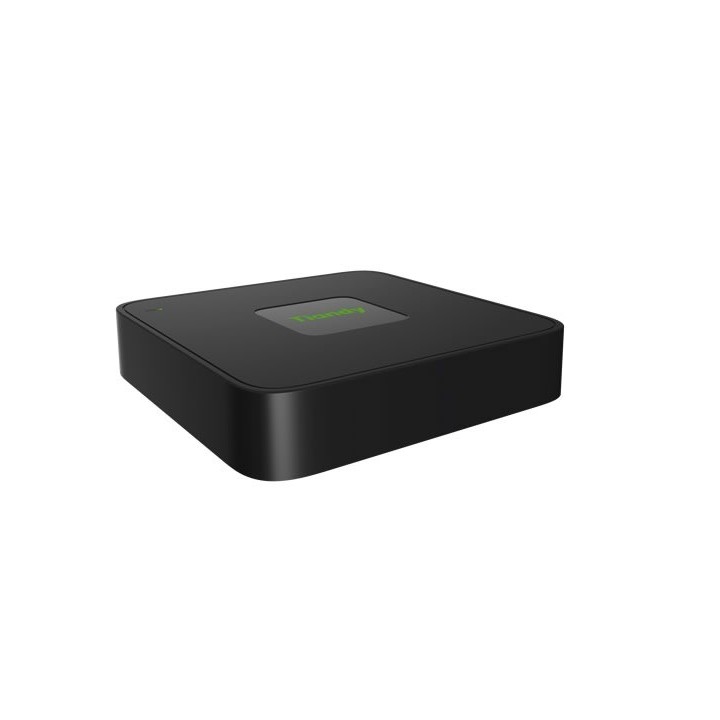

The Tiandy TC-R3105 NVR recorder provides professional storage capabilities with 4 integrated PoE ports. Supporting up to 5 camera inputs, it works with H.265, H.264 and other modern video codecs to minimize bandwidth consumption and reduce storage requirements by up to 75%. The recorder includes 1 SATA interface for hard drives up to 6TB (not included) and an HDMI output for live viewing and playback.

Key advantages include plug-and-play installation, motion detection alarms, cloud upgrade support, and centralized management of all connected cameras. The system also supports third-party cameras, offering flexibility for system expansion. With compact dimensions of 200x200x43mm, the NVR is easy to install and integrate into existing setups.

Product information subject to change. We accept no liability for any inaccuracies. Consult the manufacturer for official specifications.
